ZT-S09
Testing Unit: 2-Port
Cooling Method: Compressor Cooling
Temperature Control Range: -70~50°C
Display Accuracy: ±0.1°C
Bath: Dewar Flask Material
Temperature Control Method: Intelligent Digital Display
Power Supply: AC 220V, 50Hz
Power: 1200W
Ambient Temperature: 10°C~30°C
Relative Humidity: ≤85%

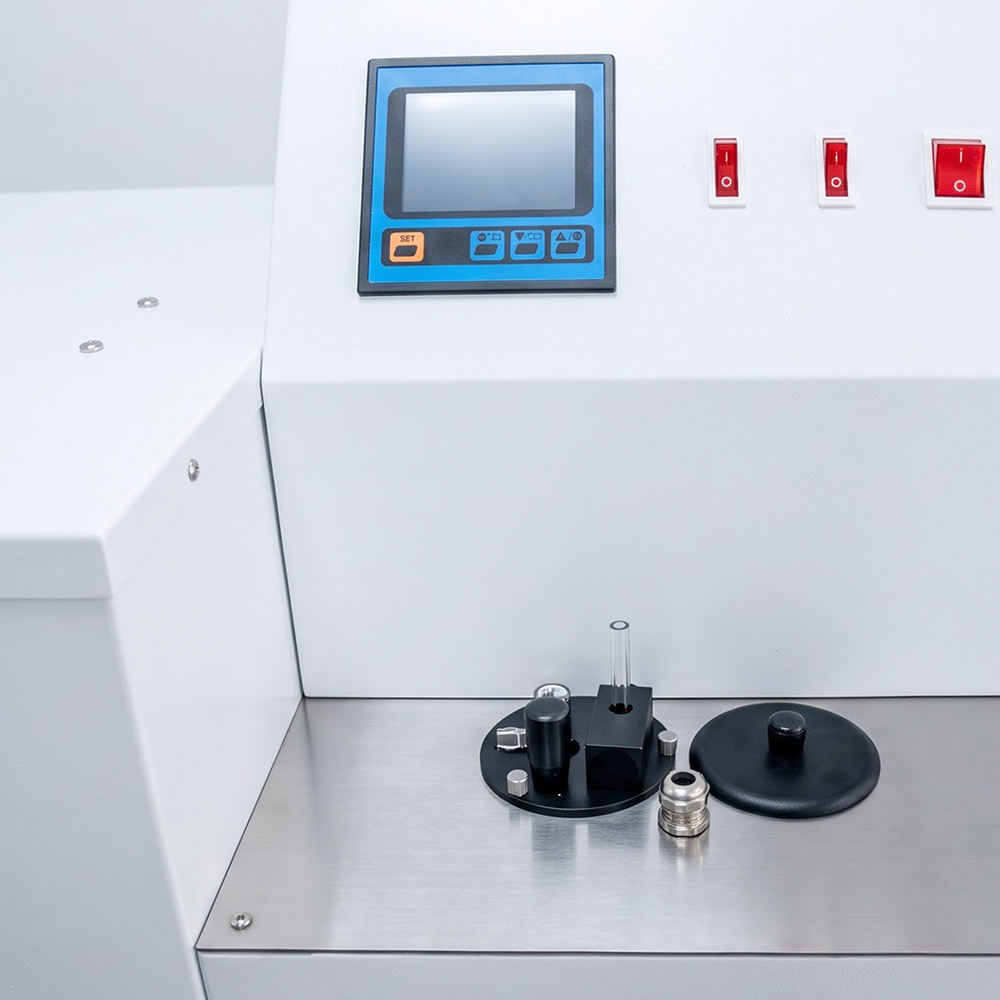

The instrument adopts intelligent digital display temperature control, providing precise temperature control and convenient operation.

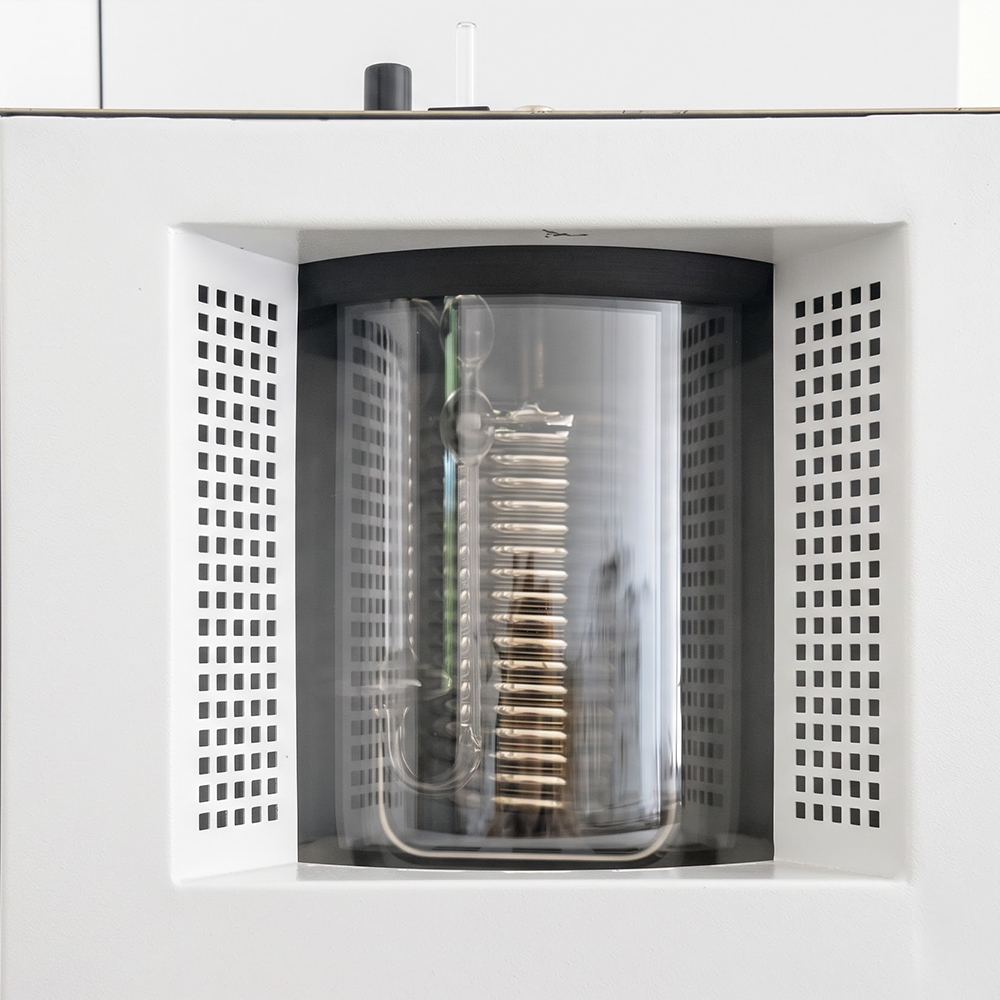

The bath tank is made of Dewar flask material, offering excellent thermal insulation and easy observation. Small fans are installed on both sides of the bath to prevent frost formation.
The instrument adopts imported compressor cooling, featuring fast cooling speed and long service life.

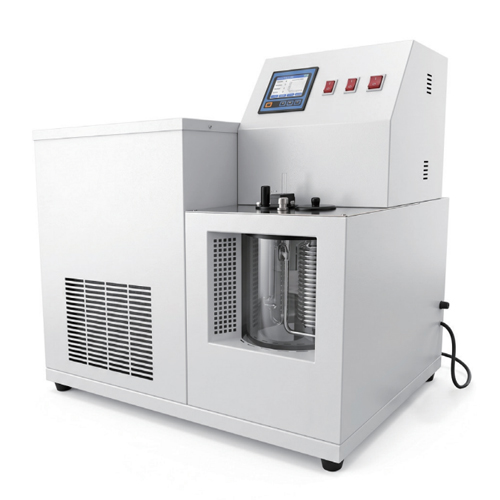

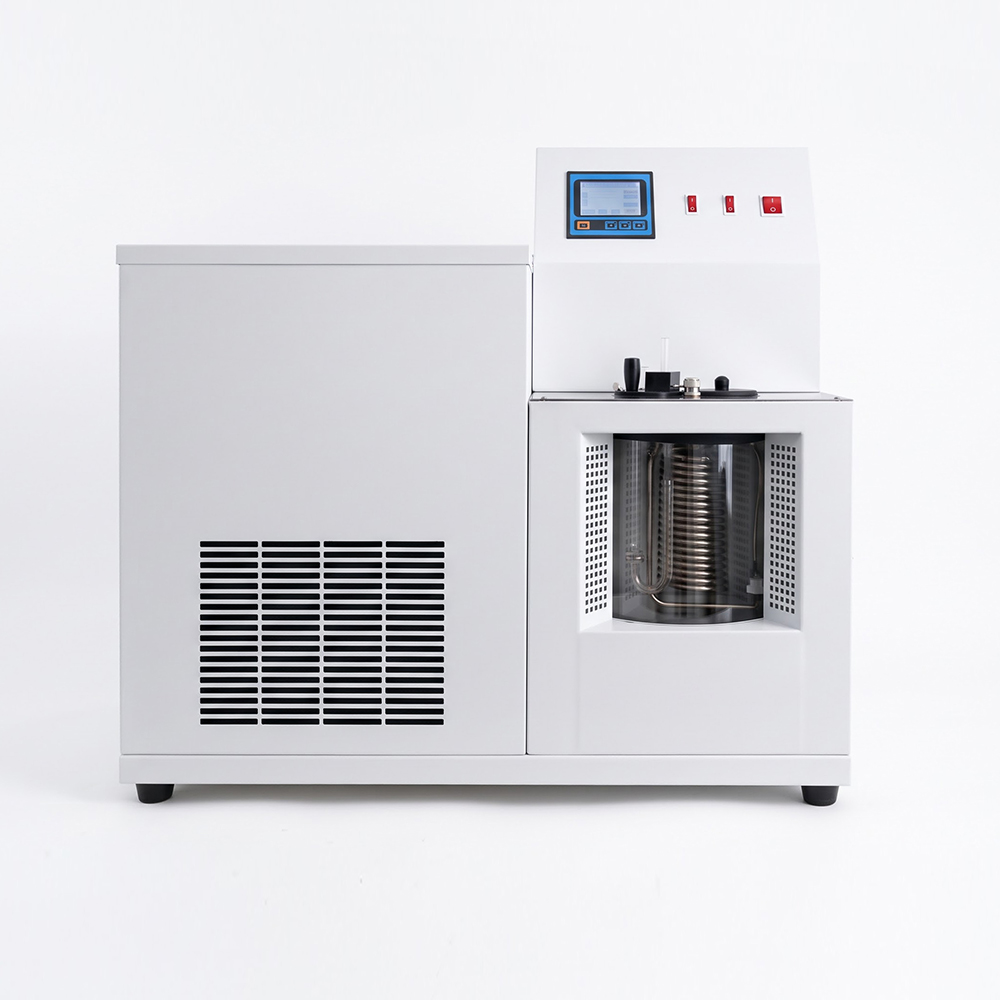

The instrument features a split left-right structure, suitable for laboratory benches and convenient to operate.
The temperature measurement section adopts a precision platinum resistance PT100 sensor, ensuring high accuracy and precise display.
| No. | Name | Unit | Quantity | Note |
|---|---|---|---|---|
| 1 | Host | set | 1 | |
| 2 | Viscosity tube | unit | 4 | |
| 3 | Thermometer | piece | 1 | |
| 4 | Power cord | piece | 1 | |
| 5 | Viscosity clamp cover | piece | 2 | |
| 6 | Fuse | piece | 1 | 6×30 15A |
| 7 | Certificate of Conformity | piece | 1 | |
| 8 | Instruction Manual / User Manual | piece | 1 |
