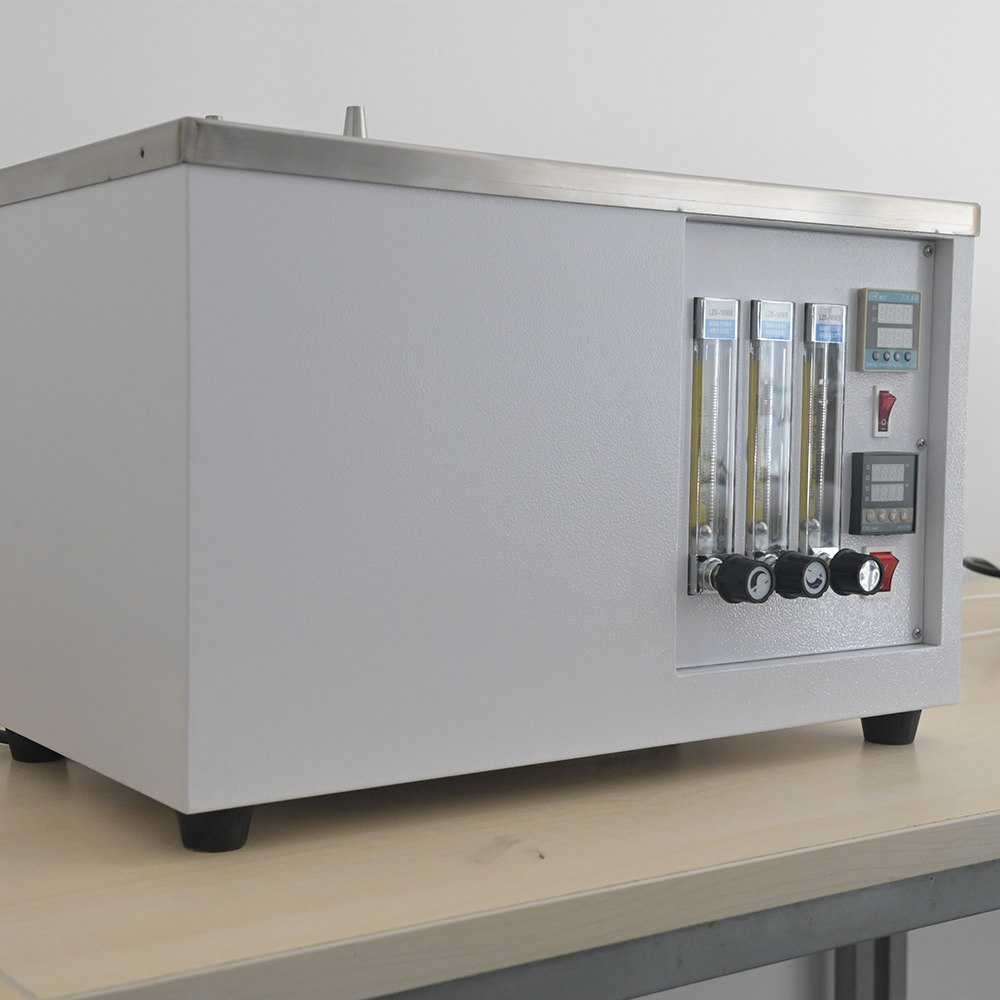

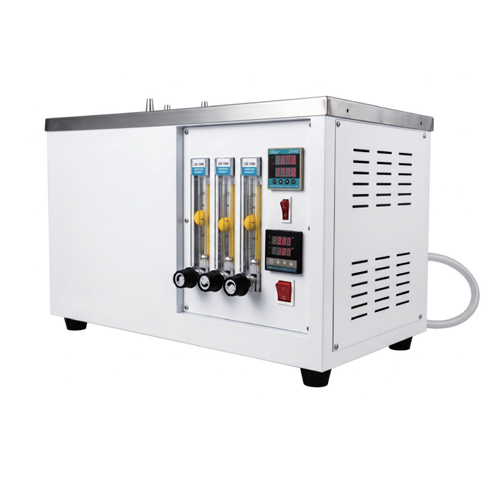

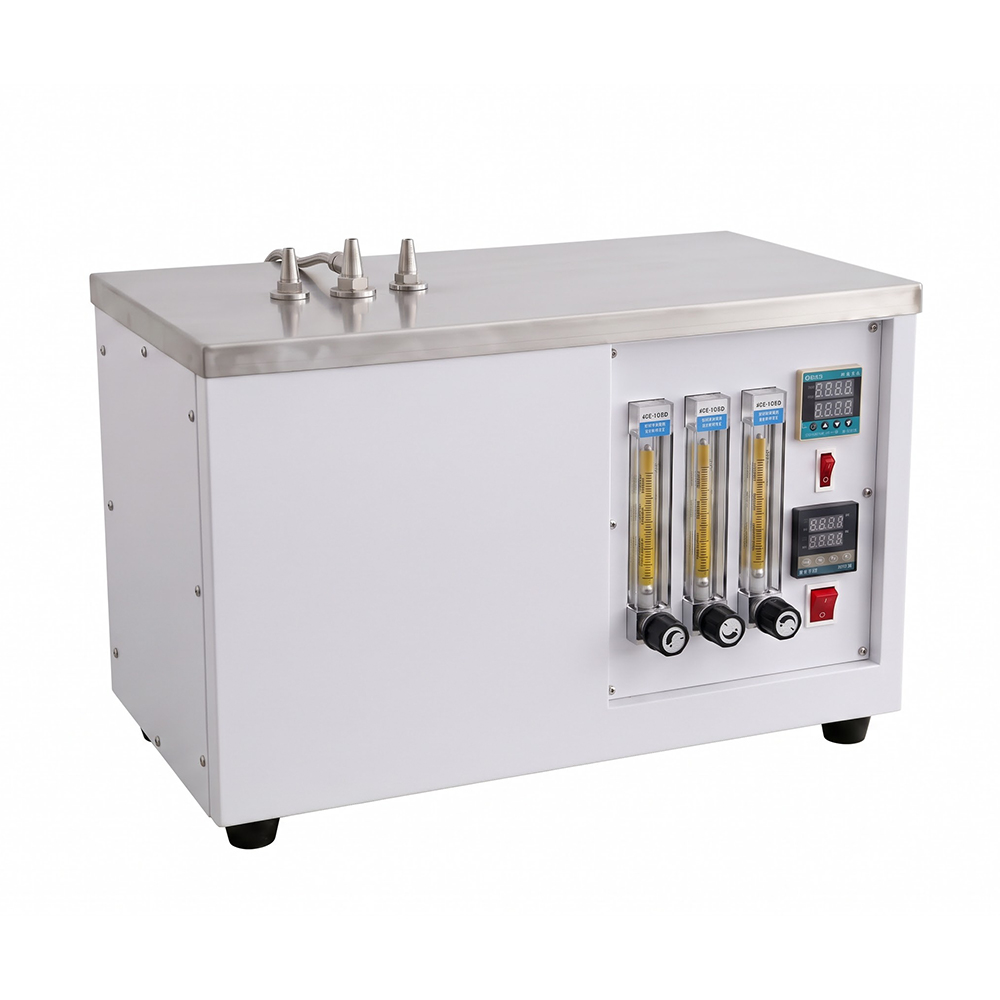

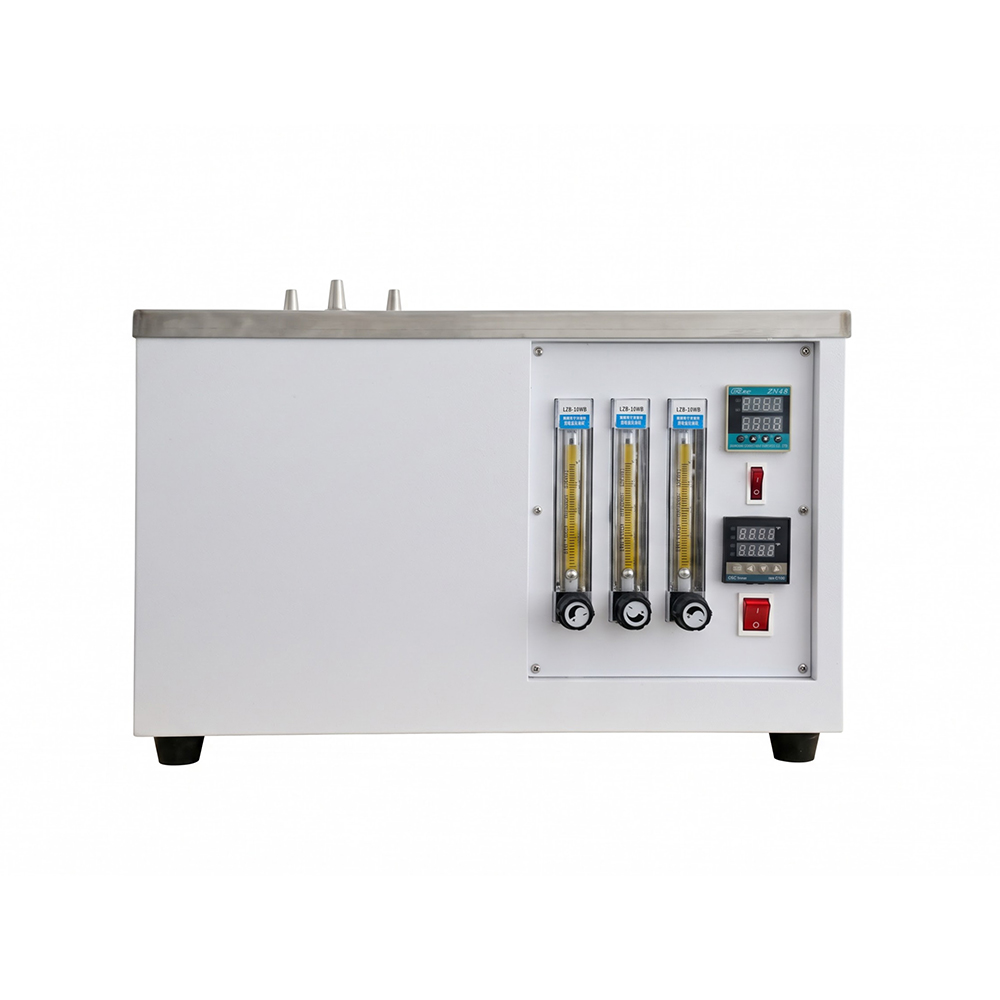

Existent Gum Tester

ZT-P04

COMPLIANCE : GB/T 8019 ASTM D381

Temperature Control Range: 160°C~165°C

Resolution: 0.1°C

Temperature Control Accuracy: ±1°C

Temperature Sensing Element: PT100

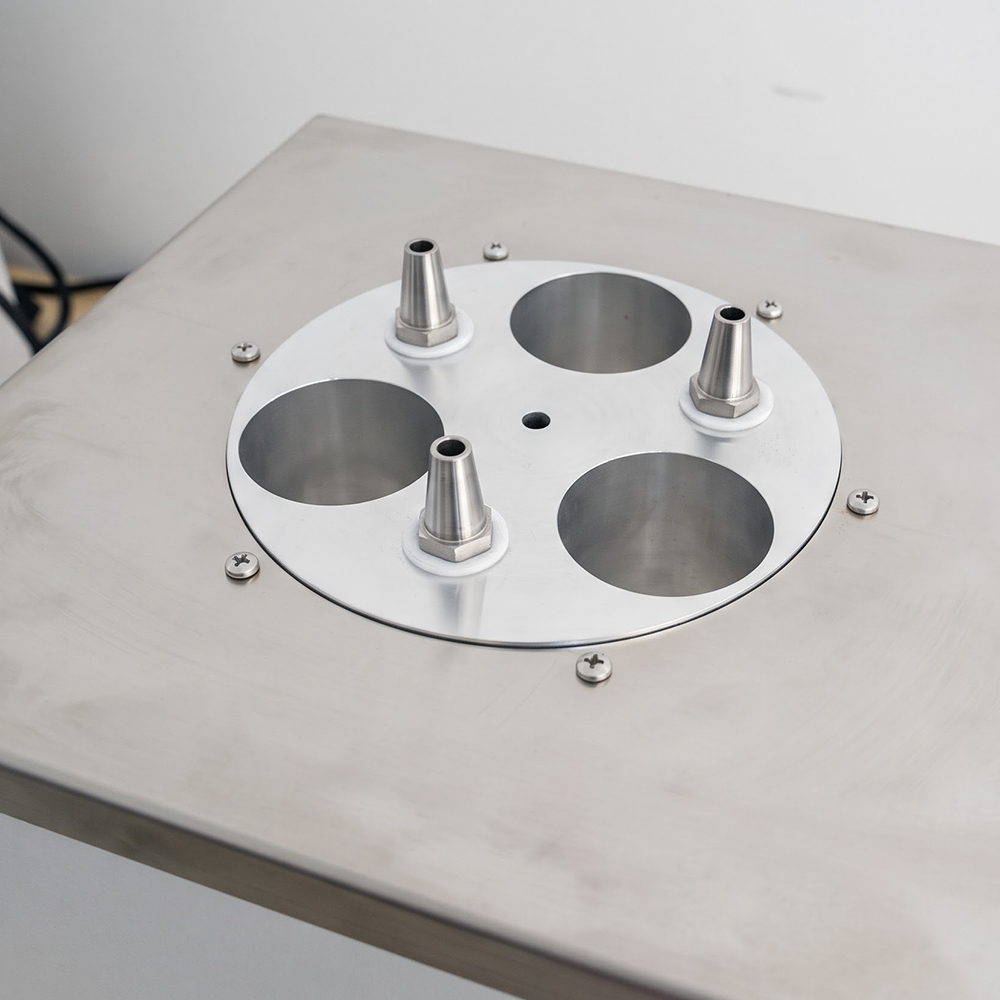

Testing Bath: Metal Bath

Test Ports: 3-Port or 5-Port

Air Flow Rate: 600±90 ml/sec per port

Power Supply: AC 220V ±10%, 50Hz

Overall Power: ≤1600W

Dimensions: 620×400×400 mm

Weight: 40 kg

Ambient Temperature: 5°C~40°C

Relative Humidity: ≤85%

The instrument adopts an integrated structure, featuring an aesthetically pleasing appearance and convenient operation.
Intelligent digital display temperature controller is used for temperature control, with a high-precision platinum resistance temperature sensor for temperature detection, ensuring accurate temperature control.
The instrument is equipped with an air filter dryer to allow clean, dry air to enter the system, ensuring the accuracy and reliability of test results. (Optional)
Equipped with 3 (or 5) flow meters, enabling independent air flow control for 3 ports (or 5 ports), ensuring the required air flow rate for testing under a certain system pressure, with flow regulation via a regulating valve.
The instrument is equipped with a timer. After the 30-minute test is completed, the instrument automatically alarms.
Equipped with an integrated pressure reducing valve and oil-water separator, capable of filtering water vapor and contaminated particles.
The heating bath is designed with thermal insulation function, providing high-temperature safety protection.
The instrument features an automatic diagnosis function with automatic over-temperature power-off protection.

NO.	Name	Unit	Quantity	Notes
1	Host	Set	1
2	Air Nozzle	Pcs	3
3	Glass Beaker	Pcs	3
4	Thermometer	Pcs	1	0℃～300℃
5	Air Inlet Tube	Pcs	1
6	Fuse	Pcs	1	6×30 15A
7	Air Compressor	Pcs	1	Optional
8	Purifier	Pcs	1	Optional
9	Certificate of Conformity	Pcs	1
10	Instruction Manual	Pcs	1
