ZT-P02Z
Pressure Measurement Range: 0~1600 kPa
Temperature Control Range: Ambient Temperature ~ 100°C
Resolution: 0.1°C
Temperature Control Accuracy: 100±0.1°C
Temperature Sensing Element: PT100
Testing Bath: Metal Bath
Test Ports: 2 ports, capable of testing two samples simultaneously
Power Supply: AC 220V, 50Hz
Overall Power: ≤1500W
Dimensions: 550mm×350mm×500mm
Weight: 40kg
Ambient Temperature: 5°C~40°C
Relative Humidity: ≤85%
The instrument adopts intelligent digital display temperature control, providing precise temperature control and convenient operation.

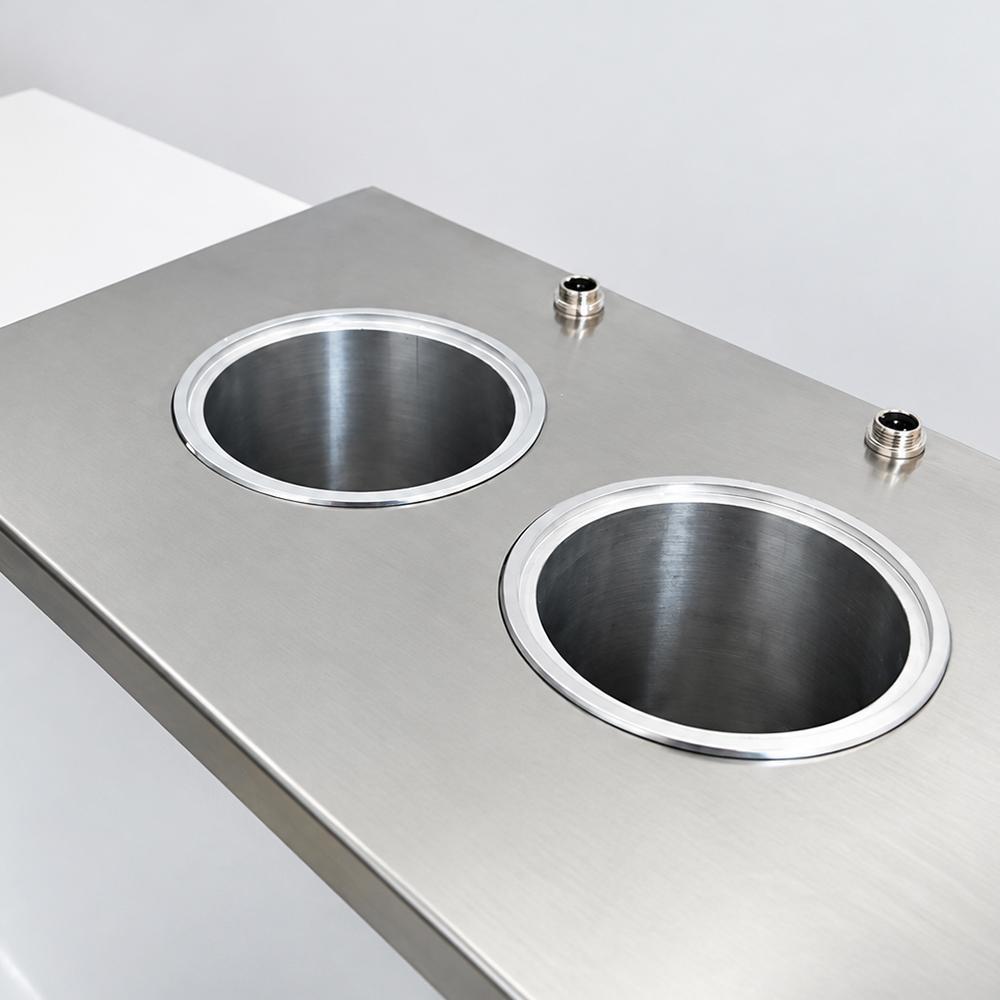

The bath tank is made of Dewar flask material, offering excellent thermal insulation and easy observation. Small fans are installed on both sides of the bath to prevent frost formation.
The instrument adopts imported compressor cooling, featuring fast cooling speed and long service life.
The instrument features a split left-right structure, suitable for laboratory benches and convenient to operate.
The temperature measurement section adopts a precision platinum resistance PT100 sensor, ensuring high accuracy and precise display.
| NO. | Name | Unit | Quantity | Notes |
|---|---|---|---|---|
| 1 | HOST | Set | 1 | Powder Coating |
| 2 | Test Bomb | Pcs | 2 | Stainless Steel |
| 3 | Glass Sample Bottle | Pcs | 2 | Glass |
| 4 | Test Bottle Cap | Pcs | 2 | Glass |
| 5 | O-Ring | Pcs | 1 | Fluororubber |
| 6 | Air Inlet Tube | Meter | 2 | φ 6puTube |
| 7 | Exhaust Tube | Meter | 2 | φ 6puTube |
| 8 | Fuse | Pcs | 1 | 6×30 10A |
| 9 | Thermometer | Pcs | 1 | 100℃ |
| 10 | Instruction Manual | Pcs | 1 | |
| 11 | Certificate of Conformity | Pcs | 1 |
