ZT-S03A/B
Test units: 2 wells
Cooling method: Compressor cooling
Cold bath temperature control range:
Type A: -40°C to 80°C, 2 wells
Type B: -70°C to 80°C, 2 wells
Temperature control accuracy: ±0.1°C
Test tubes: Dedicated for pour point or dedicated for freezing point
Power supply: AC 220 V, 50 Hz
Power: 1500 W
Ambient temperature: 10°C–30°C
Relative humidity: ≤ 85%
The instrument’s measurement system consists of a refrigeration system, a control system, and a measurement system.
The cold bath temperature of the instrument is controlled by an intelligent digital display temperature controller with PID self-tuning function, providing precise temperature control and convenient observation.

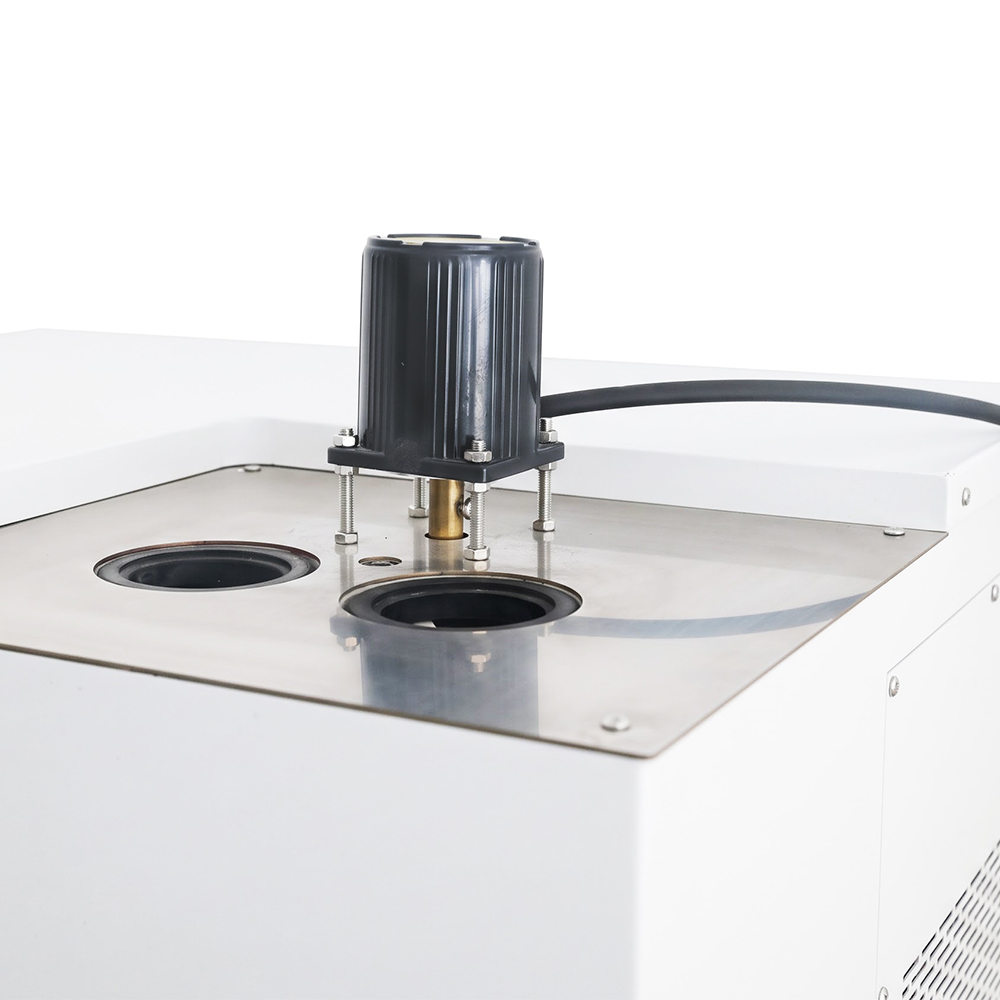

The bath of the instrument is made of stainless steel, which is corrosion-resistant. Alcohol can be used as the cooling medium, ensuring a long service life.
The instrument features a reasonable overall structure, an aesthetically pleasing appearance, and convenient operation.
| No. | Name | Unit | Quantity | Note |
|---|---|---|---|---|
| 1 | host | set | 1 | |
| 2 | Pour point test tube and accessories or freeze point accessories | set | 2 | Suitable for experimental use |
| 3 | Thermometer | piece | 2 | |
| 4 | Fuse | unit | 1 | 6×30 15A |
| 5 | Certificate of conformity | set | 1 | |
| 6 | Instruction manual | set | 1 |
