ZT-D10
Measurement range: 0.1% (m/m) – 30.0% (m/m)
Temperature control range: 0.0°C – 520°C
Resolution: 0.1°C (0.0°C – 999.9°C)
Temperature control accuracy: ±2°C
Temperature sensing element: K-type thermocouple
Test bath: Metal bath
Flow rate adjustment range: 150 mL/min – 600 mL/min (automatic switching)
Pressure adjustment range: 0–500 kPa; test pressure: 0.2 MPa
Test wells: 12 (with dedicated tools)
Gas consumption: Standard nitrogen cylinder, 100 tests per cylinder
Power supply: AC 220 V ± 10%, 50 Hz
Overall power: ≤ 1600 W
Dimensions: 500 mm × 500 mm × 500 mm
Instrument weight: 30 kg
Ambient temperature: 5°C–40°C
Relative humidity: ≤ 85%
7-inch TFT color touch screen, human-machine interaction, intuitive and convenient.
Chinese operation interface, touch screen operation, convenient and efficient.
Automatic control of heating rate and automatic adjustment of nitrogen flow rate.
Desktop integrated machine with embedded operating system.
Micro method test, capable of testing 12 samples simultaneously.

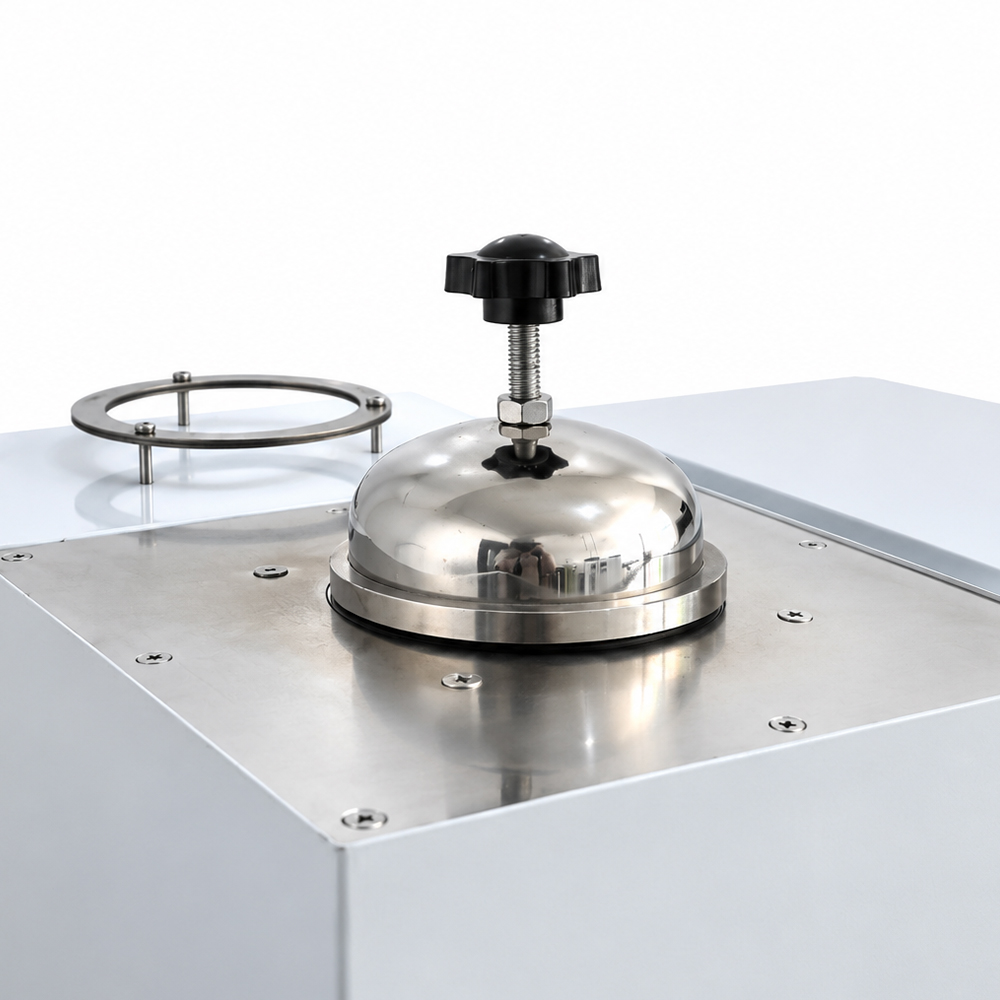

High-temperature furnace designed with thermal insulation function for high-temperature safety protection.
Editable input of sample tube and sample mass.
Automatic calculation of carbon residue value.
Storage of 1,000 sets of historical data for convenient query.
Nitrogen protective gas flow adopted, with exhaust gas discharged through gas conduit method, safe and reliable.
The instrument features automatic diagnosis function and automatic power-off protection in case of over-temperature.
| NO. | Name | Unit | Quantity | Notes |
|---|---|---|---|---|
| 1 | Host | Set | 1 | |
| 2 | Large Sample Tube | 12×70 | Pcs | 24 |
| 3 | Small Sample Tube | 12×35 | Pcs | 24 |
| 4 | Bottle Rack Hook | Pcs | 1 | |
| 5 | Standard Sample Bottle Rack | 12hole | Pcs | 1 |
| 6 | Waste Liquid Collection Bottle | Pcs | 1 | |
| 7 | Air Inlet Tube | φ 6pu Tube | Meter | 2 |
| 8 | Exhaust Tube | φ 10pu Tube | Meter | 2 |
| 9 | Fuse | 6×30 15A | Pcs | 1 |
| 10 | Certificate of Conformity | Pcs | 1 | |
| 11 | Instruction Manual | Pcs | 1 |
