ZT-D12
Test units: 1 well or 2 wells
Cooling method: Compressor cooling
Temperature control range: -70°C to 80°C
Display accuracy: ±0.1°C

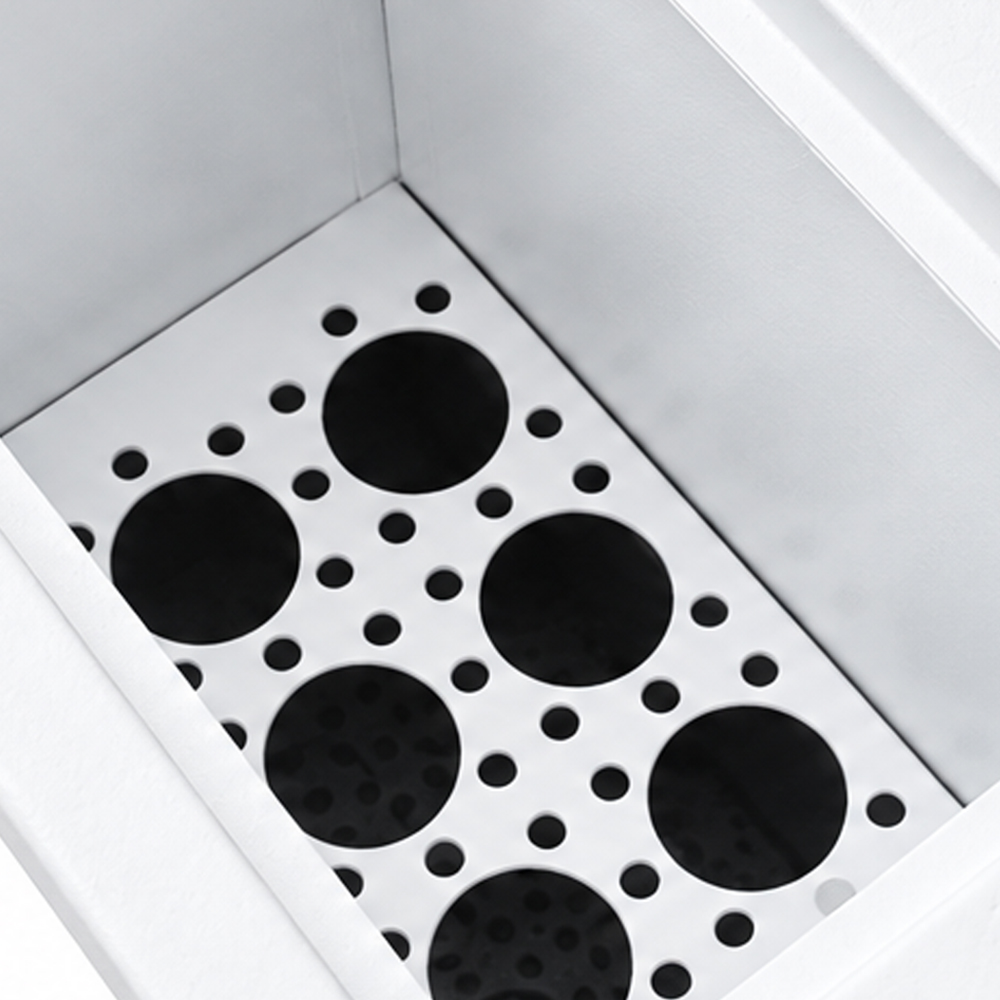

Bath: Dewar flask material
Display mode: 7-inch touch screen, PLC controller
Temperature sensor: High-precision Class A platinum resistance
Sample stirring: 60 times/min
Repeatability: < 0.3°C
Power supply: AC 220 V, 50 Hz
Power: 1200 W
Ambient temperature: 10°C–30°C
Relative humidity: ≤ 85%

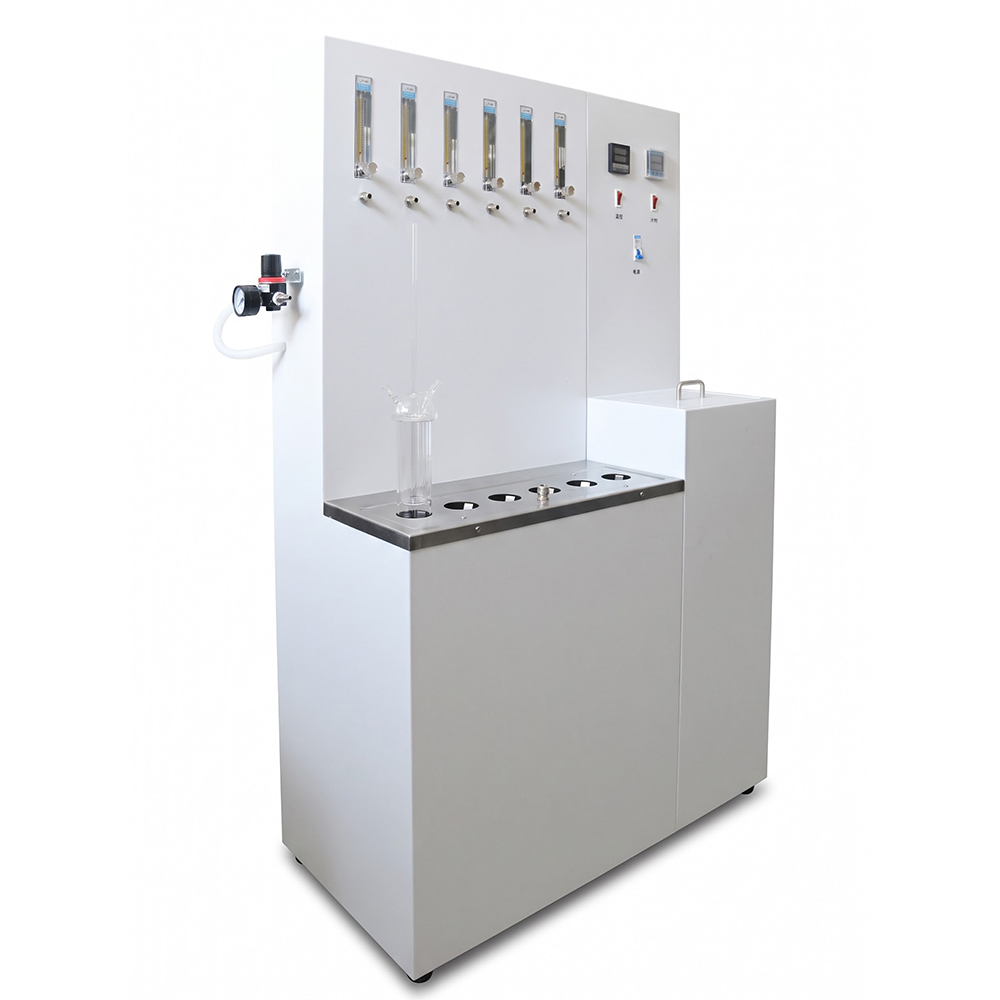

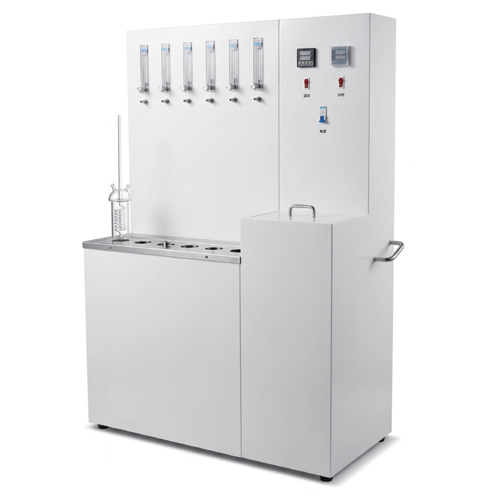

The instrument adopts an integrated structure, featuring an aesthetically pleasing appearance and convenient operation.
The digital display temperature controller provides automatic temperature control, and a high-precision platinum resistance temperature sensor is used for temperature detection, ensuring precise temperature control.
A dark box is provided for light-protected storage of oxidation tubes before being placed into the heating bath and for light-protected cooling of the oxidation tubes after removal.
The instrument is equipped with a timer for recording the test time.

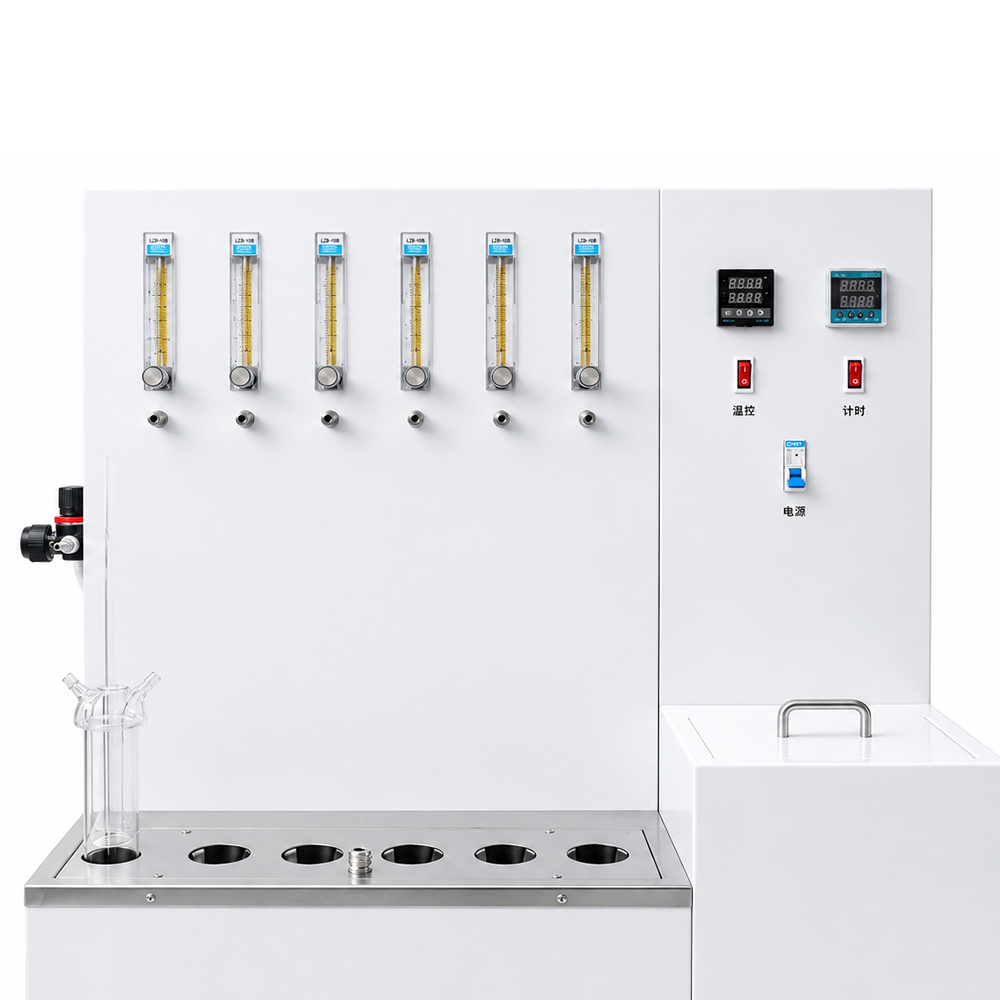

Six flow meters are installed to respectively indicate the gas flow rate introduced into each of the six oxidation tubes, allowing six samples to be tested simultaneously.
| No. | Name | Specification | Unit | Quantity |
|---|---|---|---|---|
| 1 | Complete machine | Plastic spraying | Set | 1 |
| 2 | Dark box | Plastic spraying | Set | 1 |
| 3 | Oxidation tube | Glass | Piece | 6 |
| 4 | Condenser | Glass | Piece | 6 |
| 5 | Oxygen tube | Glass | Piece | 6 |
| 6 | Powder coating | Plastic | Unit | 6 |
| 7 | Glass | 6×30 15A | Unit | 1 |
| 8 | Pressure reducing valve adapter | Unit | 1 | |
| 9 | Air inlet tube | ф6pu tube | Meter | 4 |
| 11 | Water delivery pipe | Corrugated tube | Meter | 4 |
| 12 | Instruction Manual | Piece | 1 | |
| 13 | Certificate of Conformity | Piece | 1 |
